Epe foam pipe rod machine

Short Description:

PE foam and related products are made from PE resin and it is expanded and formed into shapes by being heated and extruded. And it is easy to be decompounded and environment friendly.

Send email to us get more information

Product Detail

Product Tags

Parameter

Model	Unit	HOTY-70	HOTY-75	HOTY-90	HOTY-105	HOTY-120
Raw material	LDPE, GMS, butane gas, talc
Capacity	kg/hr	80-120	80-120	70-80
Production line speed	m/min	50-60	50-60	50-60	50-60	50-60
L/D		55:1	55:1	55:1	55:1	55:1
Screw speed	r/min	5-60	5-60	5-60	5-60	5-60
Foam rate		20-40	20-40	20-40	20-40	20-40
Pipe Specification	mm	Ф20-40	Ф20-50	Ф30-80	Ф40-100	Ф50-120
Rod Specification		Ф6-30	Ф8-35	Ф15-50	Ф18-70	Ф20-80
Cooling method		Water cooling
Total power	kw	36	40	90	100	120
Overall size	t	151.31.7	161.31.7	181.61.7	201.81.7	2222
Total weight		3.8	4.2	6.6	7.2	8.6
Power supply	380V, 50HZ , 3 Phase

working process

machine description

Epe foam sheet extruder producing fine closed cell Polyethylene foam sheet, by our unique designed Screw and Barrel system, using Butane foaming agent, Talc powder or Talc master batch and Anti-shrinking agent (GMS for short-Surface Active Agent) by accumulated experience and advanced technology.

Extruder

Gear wheel: SCM4 special gear wheel, Polished and heated
Motor: AC30KW×4P Equipped with the transducer
Method of heating: casted aluminum heater
Method of cooling: cycle water
Material: 38CrMoALA nitriding steel

Heating and cooling system

Material: 38CrMoAl
Heating area: 9 sets
Method of heating: casted aluminum heater
Method of cooling: cycle water

Screen Changer

After the Epe material is plasticized, foreign particles and impurities are filtered out when the plasticized material flows through the filter to reduce the generation of waste and ensure product quality

Head

Type: round mold head for expanding
Material: 38CrMoAl
Heating region: 1 zone
Heating method: electricity heater
Fuse pressure panel: 0-70Mpa
Fuse temperature: T/M detector , 1 detecting site

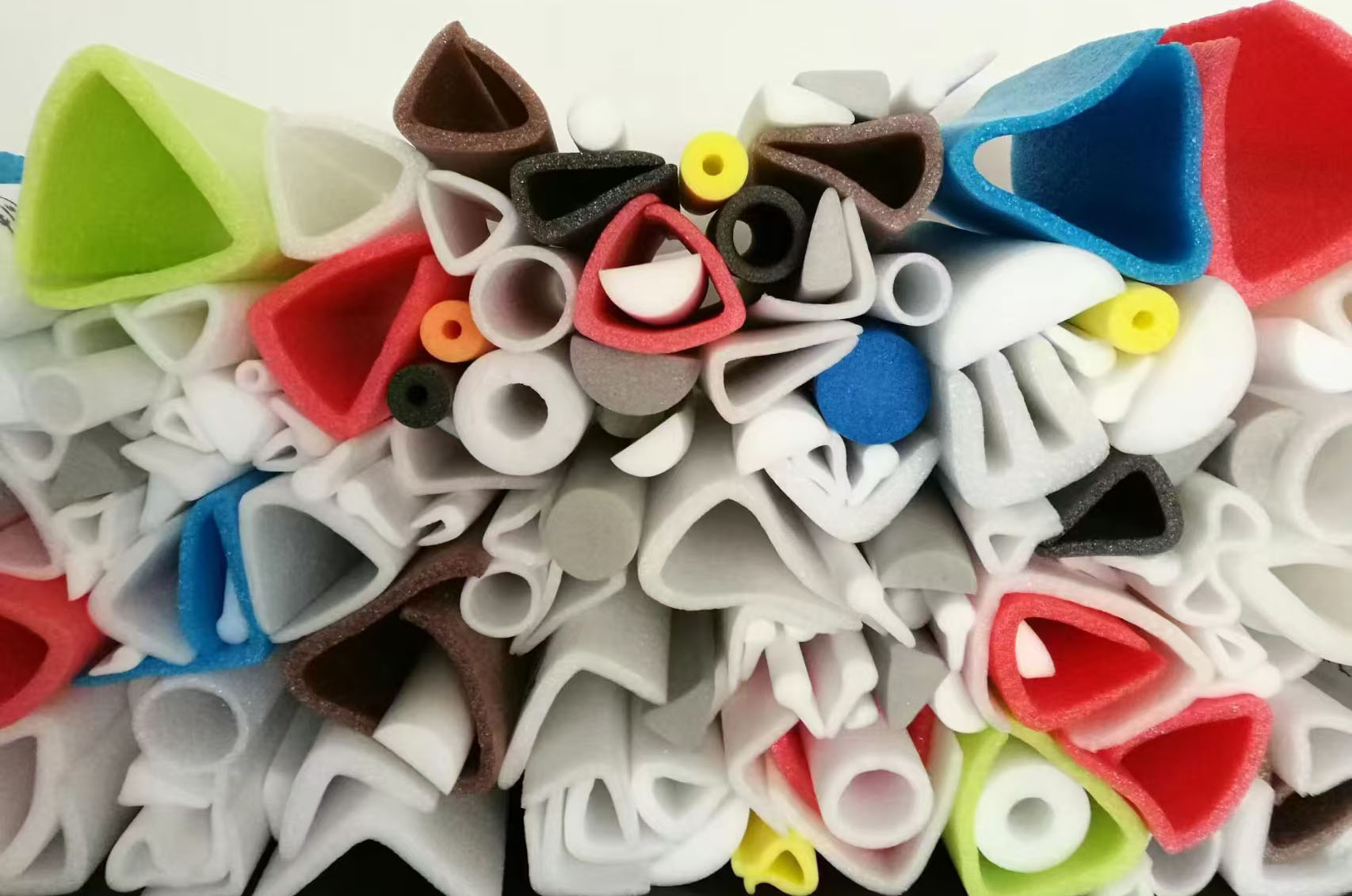

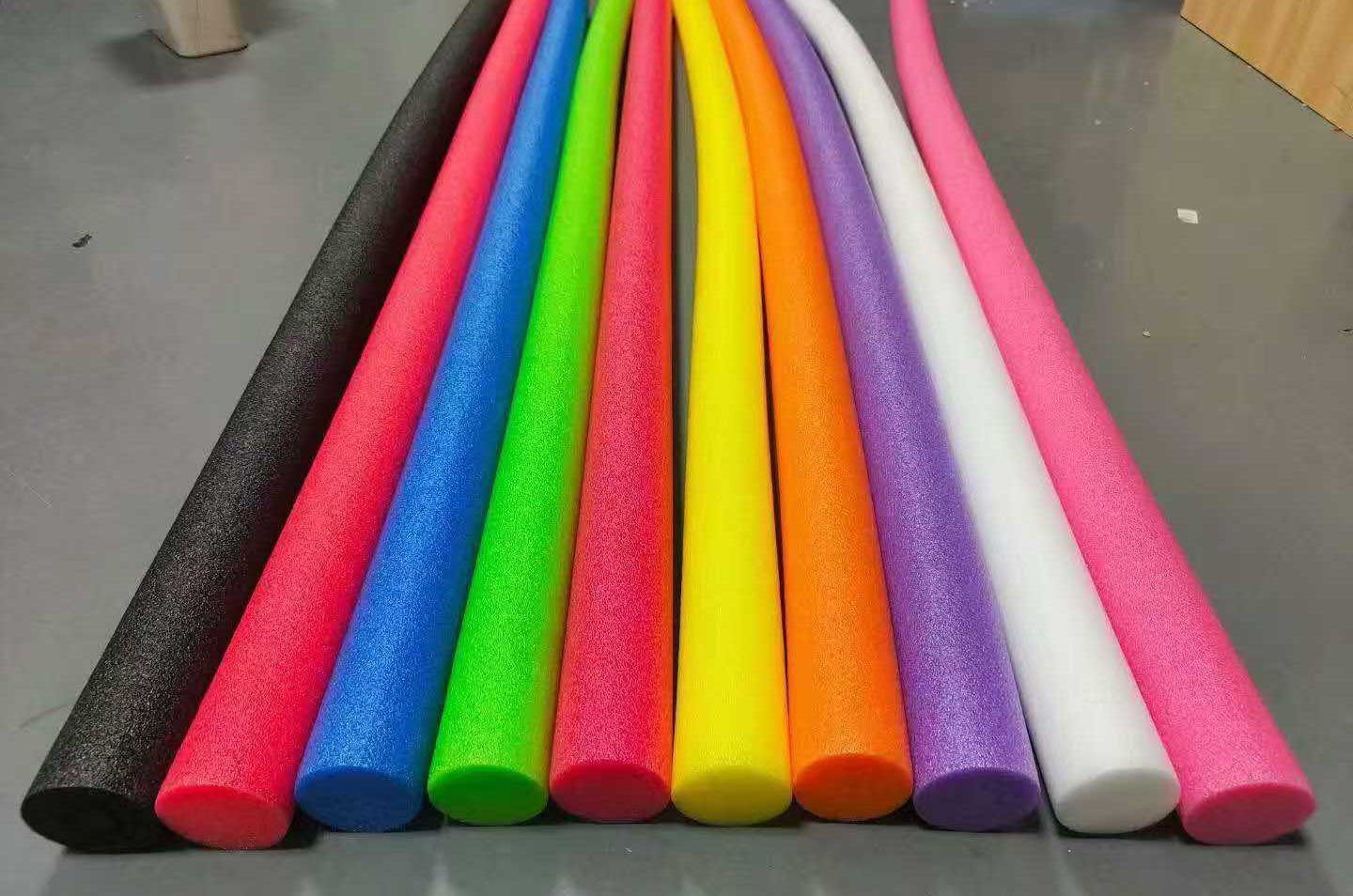

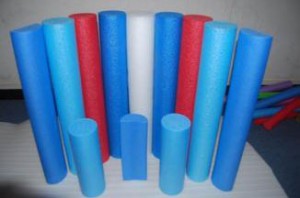

Display of finished products

EPE foam pipe extruder is a new type of foam material. This machine is mainly used to produce EPE foam pipe, rod, U shape and V shape. And because of its good foamability, elasticity and thermal insulation, it can be used for heat insulation. It is widely used in the sheathing of air-conditioning pipes, heat insulation, toy guardrails, playgrounds, etc.
